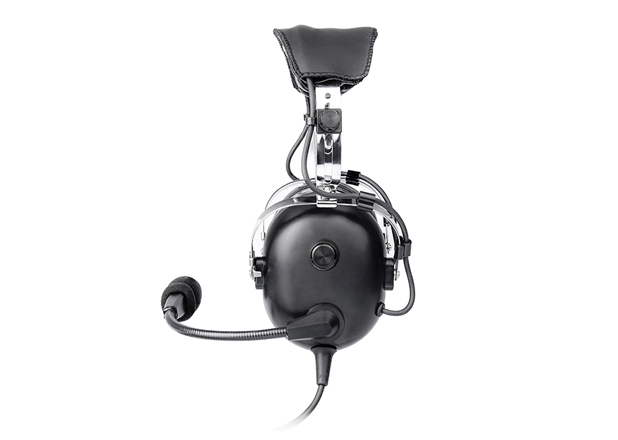

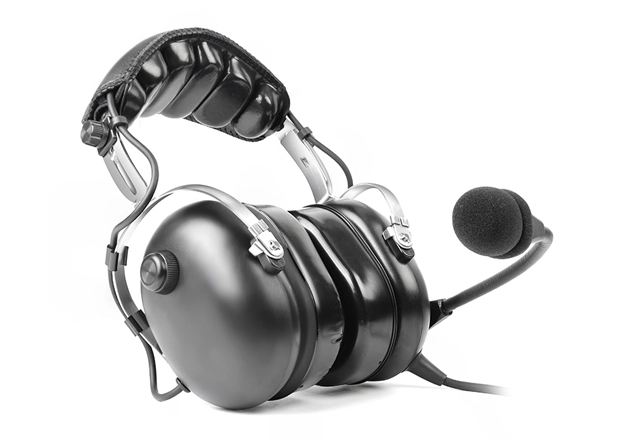

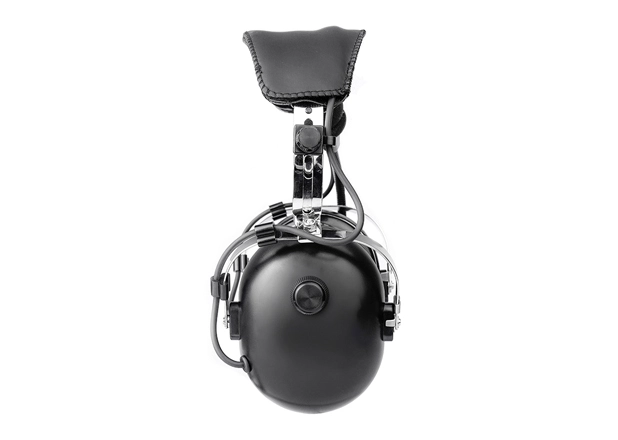

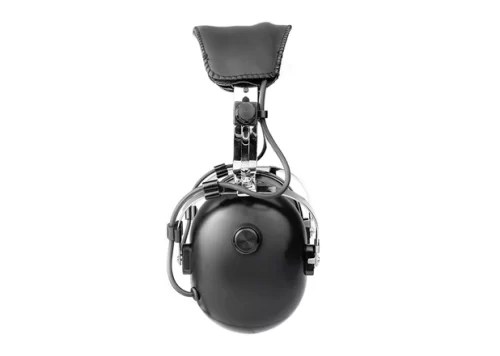

PH-100A-GA/ANR/SC Active Noise Reduction Aviation Headset
370,00 €
PH-100A-GA/ANR/SC aviation headset with Active Noise Reduction
Clear Hear performance audio speakers, dual volume control stereo, and easy access AA battery box with mono switch.

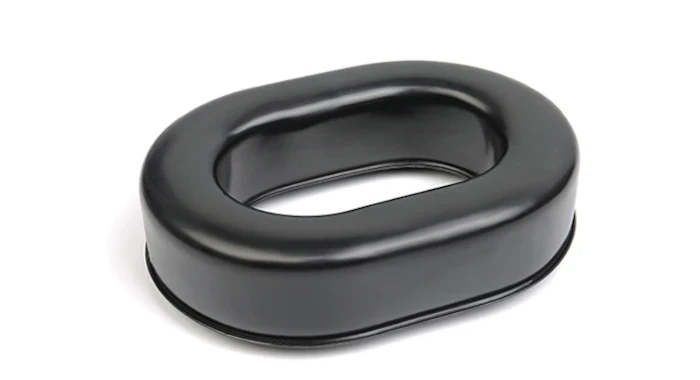

Comfortable half Gel half foam ear seals; Adjustable spring steel headband; Clear Hear ANR audio technology blocking out the background noise; All new designed noise cancelling microphone and wind block foam mic muff. Pilots and flight instructors will enjoy the PH-100AC ANR aviation headset Brought all day comfort.
Battery box with
S/M switch

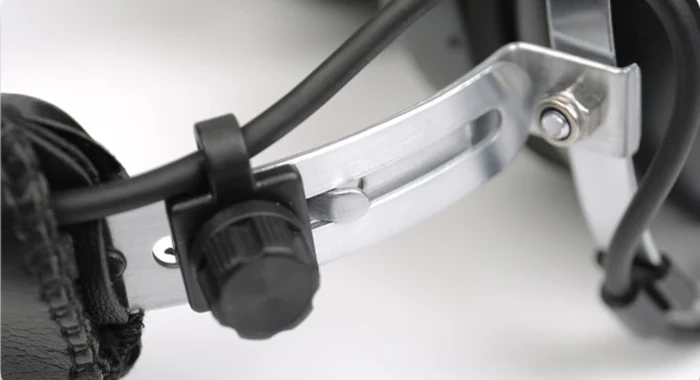

Over-the-head stainless steel adjustable band

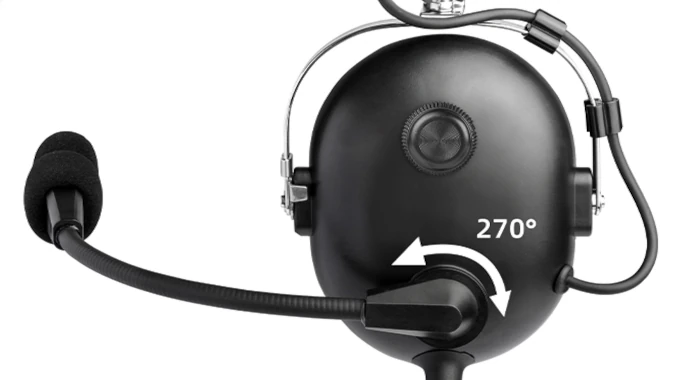

270 degree rotatable flexible boom

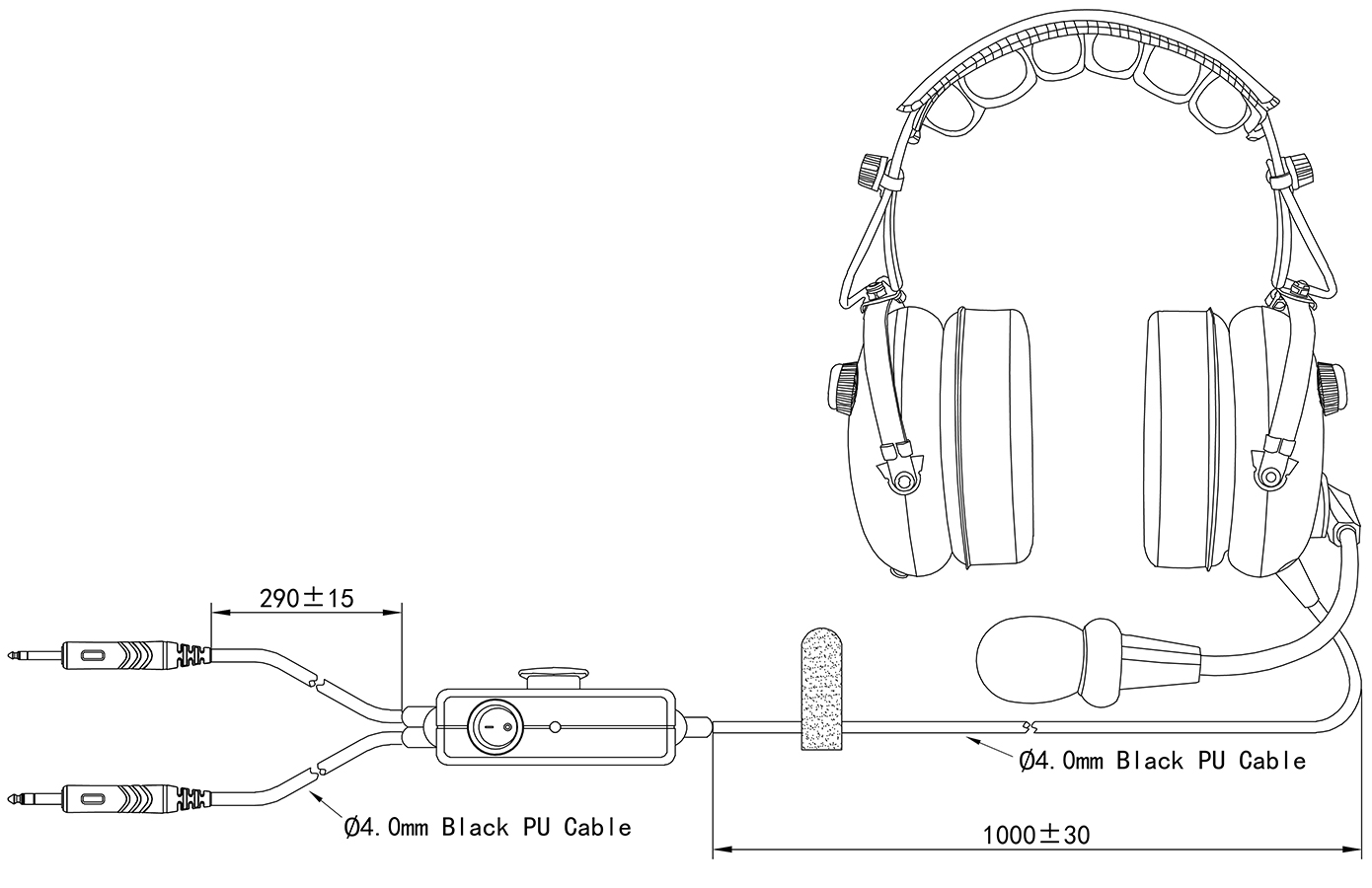

Specifications
| Microphone Specification: | |
| Sensitivity Range | -52± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
| Impedance Max | 2.2K2 1kHz (RL=2.2KΩ) |
| Frequency | 20-20KHz |
| Current Consumption Max | VS=2.0V RL=2.2KΩ MAX: 500 μA |
| Operation Voltage Range | 2.5-10V (DC |
| Max Sound pressure Level | 110dB S.P.L |
| Speaker Specification: | |
| Impedance | 45Ω+15%@1KHZ |
| Sensitivity | 95dB+10%/1Watt 0.5Meter |
| Resonance freq | (FO) 680HZ+20% |
| Frequency respond | F-5KHZ |
| Rated input power | 1.0W |
| Maximum input power | 1.5W |
