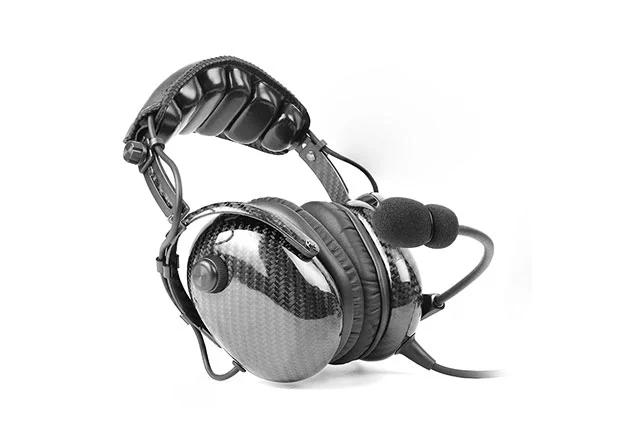

PH-400A-GA/ANR/SC Carbon Fiber Active Noise Reduction Aviation Headset
629,00 €

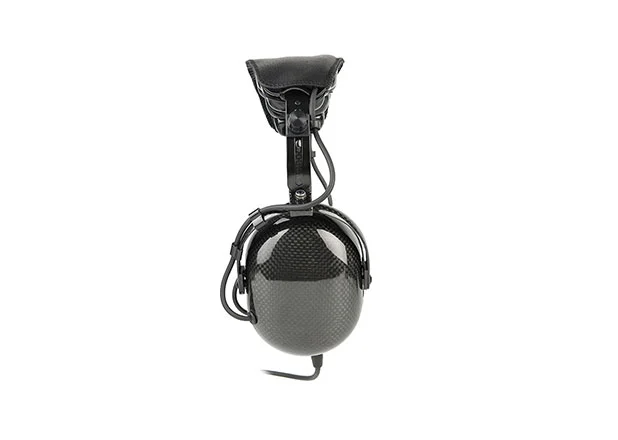

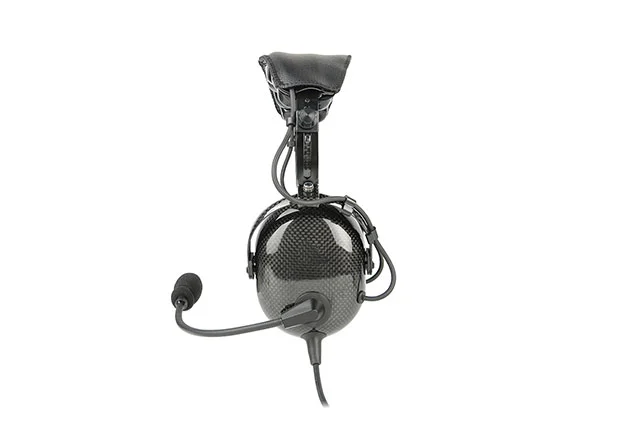

PH-400A-GA/ANR/SC (Carbon Fiber edition) is a limited series of aviation headsets.
Which most of the structural elements including shells and their handles, are made of carbon fiber. The use of this material, apart from the unique aesthetics, has reduced the weight of the headphones. (only 9 ounces). Pilot first of all he would feel comfortable, especially after long hours of flights.
PH-400A-GA/ANR/SC is equipped with a standard Faux Leather earpads but other types of earpads are also available.

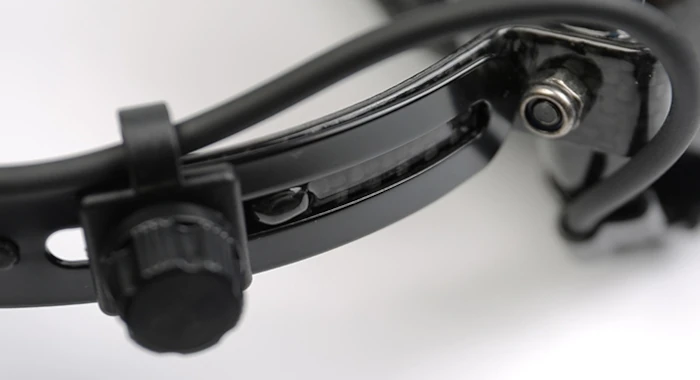

Over-the-head
Adjustable Band

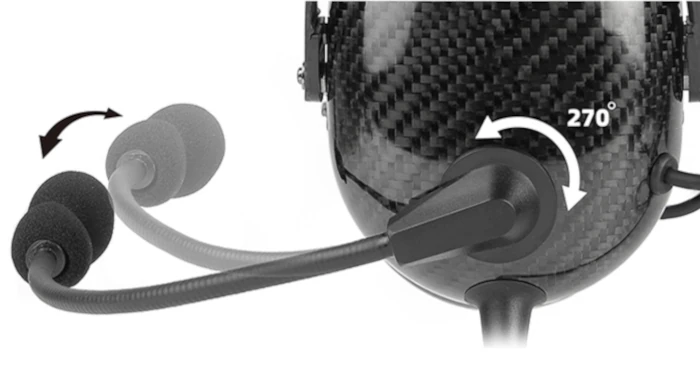

270 degree rotatable Flexible Boom Microphone

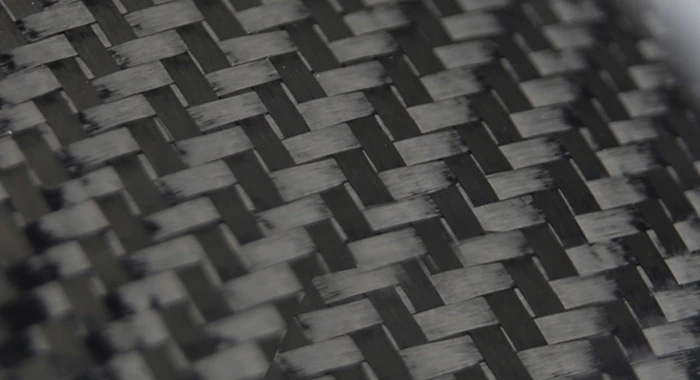

Carbon Fiber
Ear Shell

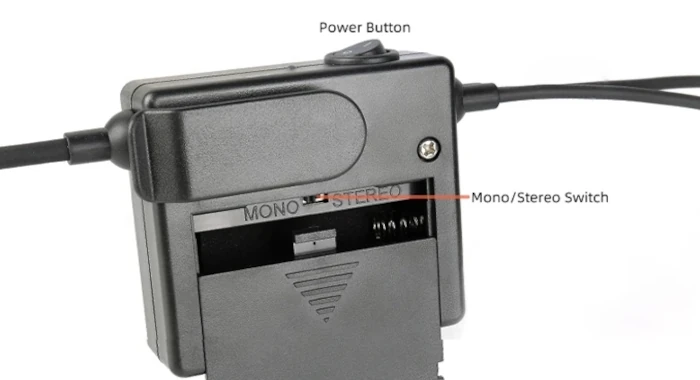

Battery box
with S/M switch

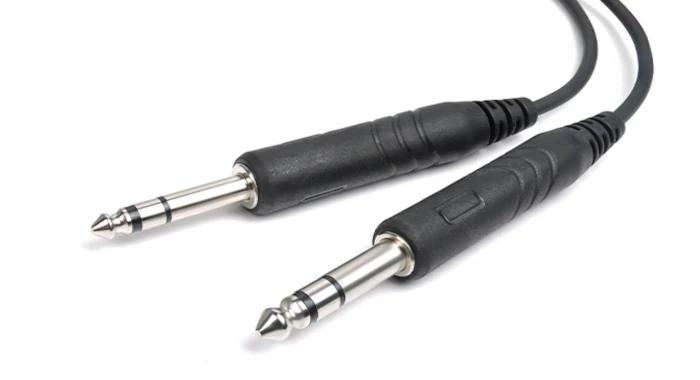

PJ-055 and PJ-068 GA
dual plugs

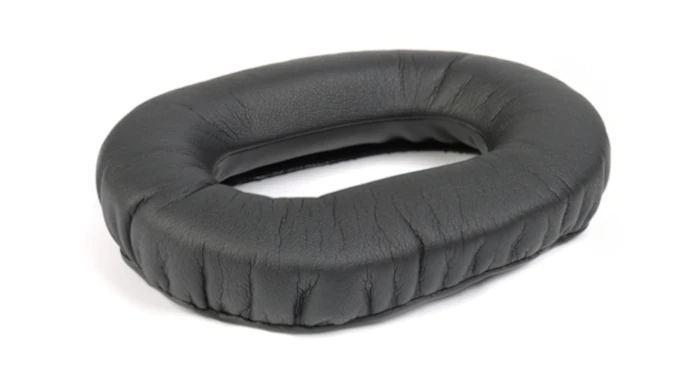

Comfortable faux
leather cushion
Specifications
| Microphone Specification: | |
| Sensitivity Range | -52± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
| Impedance Max | 2.2K2 1kHz (RL=2.2KΩ) |
| Frequency | 20-20KHz |
| Current Consumption Max | VS=2.0V RL=2.2KΩ MAX: 500 μA |
| Operation Voltage Range | 2.5-10V (DC |
| Max Sound pressure Level | 110dB S.P.L |
| Speaker Specification: | |
| Impedance | 45Ω+15%@1KHZ |
| Sensitivity | 95dB+10%/1Watt 0.5Meter |
| Resonance freq | (FO) 680HZ+20% |
| Frequency respond | F-5KHZ |
| Rated input power | 1.0W |
| Maximum input power | 1.5W |
